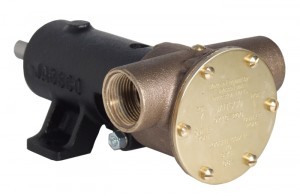

9710 Series 1″ Bronze Pedestal Pump


Flow rate: Nominal 80 Litres/min (17.8 gallons/min) at 1500rpm
Self-priming from dry up to 2.4m (7.8ft)


Model No.: 9710 Series

  • Constructed from marine quality bronze and stainless steel for ruggedness and reliability.
  • Easy to service and maintain.
  • Inexpensive to buy and operate.
  • Will tolerate abrasive wear (this may affect performance – seek advice from your distributer).
  • Handles hard and soft solids without clogging.
  • Can pump in either direction.
  • Will not airlock.



Body Materials Bronze head, Cast Iron bearing housing
Impeller Neoprene or Nitrile
Wearplate Replaceable
Shaft Material Stainless steel
Seal Carbon/ceramic mechanical type
Bearings Twin single row, ball type
Port Type 1″ BSP to BS21 (DIN2999)
Weight 3.57 (kg)
7.8 (lb)

3 Models

9710-200 1″ Bronze Pedestal Pump
Impeller Neoprene
9710-237 1″ Bronze Pedestal Pump
Impeller Nitrile
9710-212 1″ Bronze Pedestal Pump
Impeller Neoprene – High Pressure


 Bronze Flexible Impeller Pump Manual
