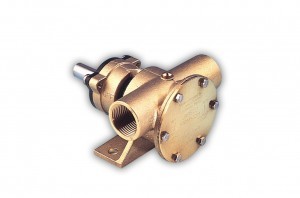

52080 Series 1″ Bronze Pedestal Pump

52080_PEDESTAL_FIP copy

Flow rate: Nominal 80 Litres/min (17.8 gallons/min) at 1500rpm
Self-priming from dry up to 2.4m (7.8ft)



Model No.: 52080 Series

  • Constructed from marine quality bronze and stainless steel for ruggedness and reliability.
  • Easy to service and maintain.
  • Inexpensive to buy and operate.
  • Will tolerate abrasive wear (this may affect performance – seek advice from your distributer).
  • Handles hard and soft solids without clogging.
  • Can pump in either direction.
  • Will not airlock.



Specifications

Body Materials Bronze
Impeller Neoprene or Nitrile
Wearplate Replaceable
Shaft Material Stainless steel
Seal Lip type
Bearings Twin row, ball type
Port Type 1″BSP to BS21 (DIN2999)
Weight 2.1 (kg)
4.6 (lb)

3 Models

52080-2001 1″ Bronze Pedestal Pump
Impeller Neoprene
52080-2003 1″ Bronze Pedestal Pump
Impeller Nitrile
52080-2021 1″ Bronze Pedestal Pump
Impeller Neoprene – High Pressure

Downloads

 Bronze Flexible Impeller Pump Manual
