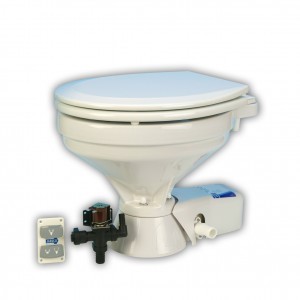

37045 Series Quiet Flush Electric Toilet – Freshwater

37045_QF_TOILET_SOLE

Model No.: 37045 Series

  • Very quiet flush cycle – like a household toilet
  • Single button flush actuator – with dual function water level control switch
  • Can be plumbed to any pressurized water system that can provide a 3-1/2 GPM (13.5 LPM) flow rate
  • Water control solenoid valve with anti-siphon breaker to prevent contamination of potable water supply
  • White vitreous china bowl available in compact or comfortable household size
  • Baked enamel seat & cover
  • High capacity waste macerator and bowl discharge pump

Specifications

Port(s) Inlet 3/4″ Hose BarbOutlet 1″ Hose Barb
Motor Type Meet U.S.C.G. Regulation183.410 and ISO 8846 MARINEfor Ignition Protection.EMC Models Available
Water Consumption 1-2 Quarts (Litres) per Flush

4 Models

37045-0092 Quiet Flush Electric Toilet – Freshwater
Compact Size Bowl

Voltage 12 EMC (Vdc)
Fuse Size 25 (amp)
37045-0094 Quiet Flush Electric Toilet – Freshwater
Compact Size Bowl

Voltage 24 EMC (Vdc)
Fuse Size 15 (amp)
37045-1092 Quiet Flush Electric Toilet – Freshwater
Household Size Bowl

Voltage 12 (Vdc)
Fuse Size 25 (amp)
37045-1094 Quiet Flush Electric Toilet – Freshwater
Household Size Bowl

Voltage 24 (Vdc)
Fuse Size 15 (amp)
